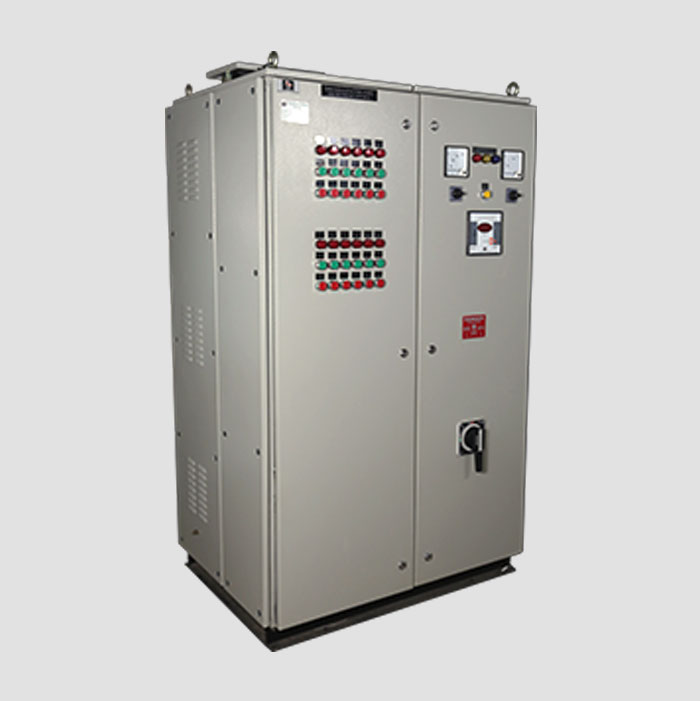

Top ACB Distribution Panel Manufacturers in Pune
AD Automation is leading ACB Distribution Panel manufacturers in Pune, suppliers, dealers, exporters and traders in Pune. Our ACB Distribution Panel is a key component of a power system that delivers reliable and safe electrical energy distribution in industrial and commercial applications. In the past 10 years we have established ourselves as a quality manufacturer with industry certifications and rigorous quality control measures in line with national and international standards. This guarantees that all ACB Panel, Low Tension Acb Panel are of the highest performance standard.
Reliable ACB Distribution Control Panel Manufacturers, Suppliers & Dealers in Pune
Our ACB Distribution Panel is engineered to meet the needs of the industry where safety, reliability and efficiency are critical. As we are ACB Distribution Panel suppliers in Pune, Our use of high-quality components and advanced engineering techniques guarantees durability in harsh conditions. The panels are built with high current ratings and protective features ensuring the safety of equipment and human lives. Our experts work to provide tailored solutions that suit industrial requirements.
About ACB Distribution Panel
ACB Distribution Panel is an electrical panel that helps in the safe distribution of electricity. It is protected by Air Circuit Breaker. It is used to regulate power in industries and large buildings. Distribution Control Panel helps in preventing overload short circuit and faults. It's a high performance and reliable.
Types of ACB Distribution Panel
As ACB Distribution Panel manufacturers in Pune, we provided different types of ACB Distribution Panel according to construction and mechanism.
- by Construction and Operation:
- Draw-out Type ACB Panels: The circuit breaker can be removed from the panel without cutting off the main supply for maintenance.
- Static (Fixed) Type ACB Panels: The circuit breaker is bolted onto the panel. Ideal for applications with limited space and low maintenance needs.
- Electrically Operated (EDO) Panels: Motor operated for remote tripping and closing.
- Manual/Mechanically Operated (MDO) Panels: Manually operated with a handle on the breaker.
- by Interruption Mechanism:
- Air Chute/Air Break ACB: Uses copper/silver-plated contacts and arc chutes to quench the arc in air, typically for low voltages.
- Magnetic ACB: Blows the arc into chutes for quicker extinction using a magnetic field, for higher voltages
Technical Specifications of ACB Distribution Panel
As ACB Distribution Panel dealers in Pune, we've added below a specialized table that provides further technical specification information.
| Feature | Draw-out Type (EDO/MDO) | Fixed Type (Static) |
|---|---|---|
| Rated Current (In) | 400A to 6300A | 400A to 2500A |
| Rated Voltage (Ue) | 415V / 690V / 1100V AC | 415V / 690V AC |
| Short Circuit (Icu) | 50kA to 100kA for 1 sec | 35kA to 65kA for 1 sec |
| Poles | 3 Pole (TP) / 4 Pole (FPN) | 3 Pole / 4 Pole |
| Operation Mode | Electrical (Motorized) / Manual | Manual / Mechanical |
| Maintenance Capability | Live replacement (Draw-out) | System Shutdown Required |
| Release Type | Microprocessor (LSIG) | Thermal-Magnetic / Basic Electronic |
| IP Protection | IP42 / IP54 | IP42 / IP54 |
| Standard Followed | IEC 60947-2 / IS 13947-2 | IEC 60947-2 |
To support industries across Maharashtra, we also serve businesses looking for trusted ACB Distribution Panel Manufacturers in Mumbai, delivering robust distribution panel solutions that ensure safe power management and reliable electrical system performance.
Work Process of ACB Distribution Panel
- Power Input Stage- Power is supplied to the panel via the main supply. The system prepares it for safe distribution.
- Air Circuit Breaker (ACB) Trip- The ACB regulates electric power and trips in case of faults. This prevents damage to the system.
- Busbar Feeding- Busbars feed the power to outgoing feeders. This ensures equal and stable distribution.
- Protection Mechanism- The panel identifies overloading and short circuits. It automatically breaks the connection.
- Control and Monitoring- Users can monitor current and voltage. Control devices enable smooth operation and adjustments.
Key Features of ACB Distribution Panel
As ACB Distribution Panel exporters in Pune, following are the features of our ACB Distribution Panel according to maintenance purpose which are given below.
- High Breaking Capacity- It can handle high fault currents effectively. It provides effective protection in heavy duty circuits.
- Effective Protection- It offers protection against overload and short circuit. This increases safety in working.
- Robust Design- High quality components are used. This helps increase life and reduce maintenance.
- Easy Maintenance- It can be easily accessed for inspection and maintenance. This reduces downtime in industries.
- Good Power Distribution- It distributes power evenly. This enhances efficiency of equipment.
Benefits of choosing our ACB Distribution Panel
As ACB Distribution Panel traders in Pune, our ACB Distribution Panel is beneficial in different sites for safety purpose which are given below.
- Increased safety- It safeguards people and equipment from faults. It enhances safety in the workplace.
- Reliable performance- It provides uninterrupted power supply. This supports smooth operations.
- Energy efficiency- It improves energy load management. This helps in saving energy and money.
- Less maintenance- It is well designed and needs less frequent maintenance. This ensures low operating cost.
- Extended lifespan- It is designed for long lasting use. This gives better return on investment.
Applications of ACB Distribution Panel
As ACB Distribution Panel in Pune, our ACB Distribution Panel is applicable in different industries and plants which are given below.
- Commercial Buildings- It is used for power distribution in large buildings. This supports lighting and equipment systems.
- Power Plants- It regulates high currents in power generation. This ensures safe energy distribution.
- Infrastructure- In large construction projects for power management. It helps maintain system stability.
- Oil And Gas- Power control applications. This ensures safety in hazardous areas.
- Data Centers- It provides continuous power supply. This ensures protection of critical equipment and systems.
Why Choose Us as ACB Distribution Panel Manufacturer?
- 10 years of Experience- We have extensive expertise in power and automation. This enables us to provide reliable products.
- Quality assurance- We use certified processes and testing. This ensures high performance products.
- Tailored designs- We create panels to suit the client. This increases efficiency and user-friendliness.
- Modern manufacturing- We use contemporary equipment. This ensures precision and consistency.
AD Automation is well-known ACB Distribution Panel manufacturers in Pune, suppliers, dealers, exporters and traders in Pune. Our ACB Distribution Panel combines safety and reliability with a high degree of durability for today's industries. Its design caters to an ever-increasing power demand with safe protection and distribution. Contact AD Automation for reliable solutions to upgrade your power. We will help you get safe and efficient operation.
FAQs
It safely supplies and protects the electrical system. It's a must for heavy duty use.
It is found in industries commercial premises and power supplies. It is designed for high current applications.
It trips instantaneously on faults. This avoids equipment damage and safety.
They are made with good quality materials and components. They are durable and reliable.
